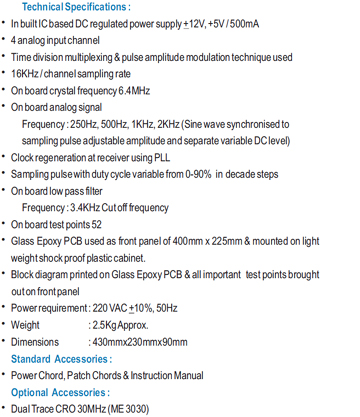

ME 777 - TDM Pulse Amplitude Modulation & Demodulation |
| |
|
| |
Objective: |
|
| |
- Pulse amplitude modulation technique
- Time division multiplexing and demultiplexing
- PLL as frequency multiplier to generate clock from sync signal
- 1 connection (information only) clock and sync derived at receiver
- 2 connections (information sync) clock regenerated at receiver
- 3 connection between transmitter & receiver (clock, sync & information)
- Effect of varying duty cycle of sampling pulse on signal reconstruction
|
|
| |
|
 |
| |

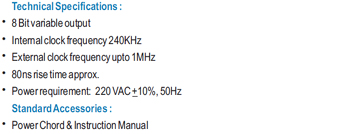

ME 780 - 8 Bit variable Data Generator |
| |
|
| |
Objective: |
|
 |
- Continuous data output (8 Bit Variable)
- Clock output
- easy to use
- To be used with ME 774 model & also independent as data generator
|
|
| |
|
 |
|
|
| |
|
|
