Function Generators |
| |
|
| |
|
|

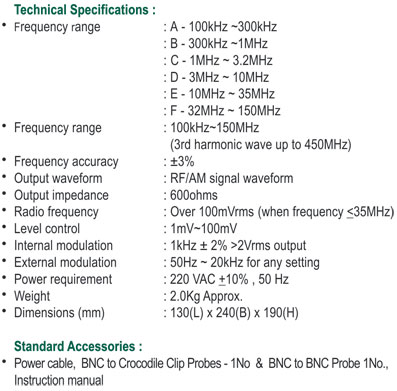

MAG 450 - RF Signal Generator 100kHz ~ 150MHz (Analog) |
| |
|
|
|
| |
Features: |
|
| |
- A low cost signal source for laboratory use
- Output Waveform: Sine and Amplitude modulation wave
- RF/AM output, max, intensity > 10V p-p
- External modulation signal can be set between 50Hz~20kHz
|
|
|
|

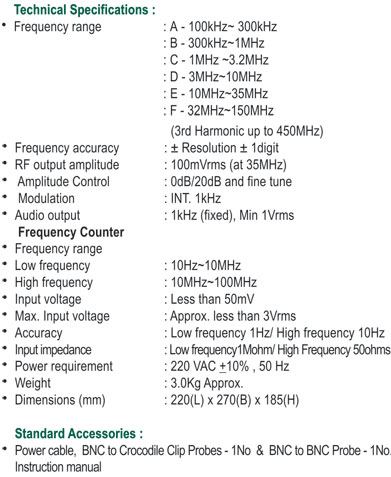

SG 4162 AD - Signal Generator 100kHz~150MHz with Frequency
Counter |
| |
|
|
|
| |
Features: |
|
| |
- Signal generator frequency range 100kHz~150MHz
- Output Waveform: Sine and Amplitude modulation wave
- 8 digit LED display for internal and external frequency
- Built in frequency meter, measuring external signal range 10Hz~100MHz
- Internal and external modulation
|
|
|
|
|
| |
|
| |
|
|
|
| |
|
