Function Generators |
| |
|
| |
|
|
|

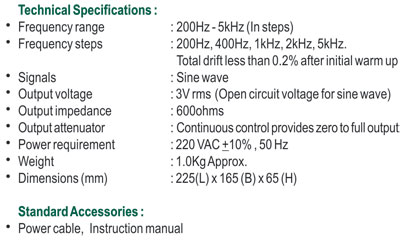

ME 270 - Signal Injector |
| |
|
|
|
| |
Features: |
|
| |
- A low cost signal source for laboratory use
- Built in high grade plastic cabinet
- Frequency Selection by selector switch. Calibrated frequency is available
- Variable controls from zero to maximum output voltage
- Waveform (Sine) is available
|
|
|
|
|
| |
|

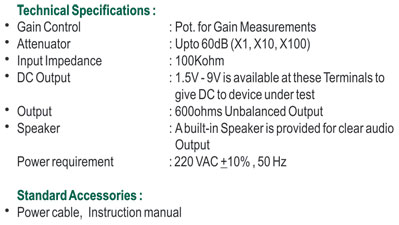

ME 271 - Signal Tracer |
| |
|
|
| |
| |
Features: |
|
| |
- A low cost signal source for laboratory use
- Built in high grade plastic cabinet
|
|
|
|
|
| |
|
| |
|

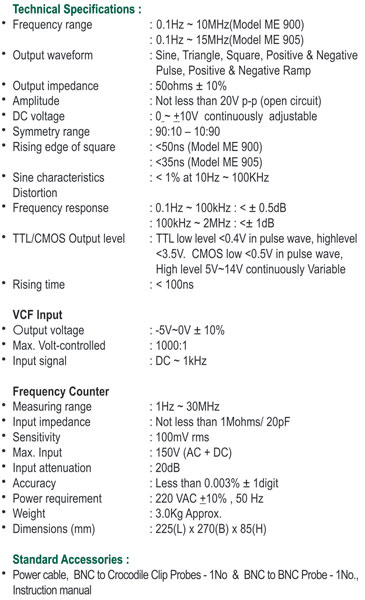

ME 900 / ME 905 - Function Generator 10 MHz / 15 MHz with AM,
FM & Frequency Counter |
| |
|
|
|
| |
Features: |
|
| |
- Output Waveform: Sine, Square, Triangle, Ramp, Pulse
- Voltage Control Frequency (VCF) capability
- TTL/CMOS and output synchronous output
- 1Hz~30MHz(Ext.)Frequency Counter
- AM & FM Output
|
|
|
|
|
|
| |
|
